Remote Desktop Protocol (RDP)
This enterprise guide to Remote Desktop Protocol (RDP) provides concise insights into core concepts, security, deployment choices, costs, and future trends.
Blog
Nerdio Manager for Enterprise
What is RDP and how does it work?
Microsoft’s Remote Desktop Protocol (RDP) is a Windows-native standard that streams your keyboard, mouse, and display data over TCP/UDP 3389, letting you operate a remote PC or server as if you were on-site.
Embedded in Azure Virtual Desktop and Windows 365, RDP powers routine administration, service-desk fixes, and secure work-from-anywhere sessions. Traffic is wrapped in TLS and can enforce Network Level Authentication, while virtual channels redirect printers, clipboards, and USB devices to keep workflows intact.
By decoupling the user experience from the physical machine, RDP helps you centralize management, cut travel, and maintain business continuity—provided you lock it down with strong credentials, MFA, and tightly scoped network access.
What benefits and limitations should business leaders know about RDP?
You want a clear view of how RDP may help—or hinder—your organization before you green-light another remote-access project. The quick lists below surface the upside RDP functionalities (centralized control, productivity, cost) and the trade-offs (security exposure, performance, licensing) that matter most at the executive level.
Remote Desktop Protocol is a cornerstone of Virtual Desktop Infrastructure (VDI), which is the practice of hosting desktop operating systems on a central server and delivering them to users on demand, thereby offering businesses enhanced data control, streamlined endpoint management, and flexible remote access capabilities.
Ultimately, technologies like RDP and VDI are pivotal in shaping an organization's End User Computing (EUC) strategy, which focuses on delivering seamless and secure access to applications and data for employees, regardless of their device or location, to enhance productivity and business agility.
Key business benefits
- Familiar, widely supported technology — RDP has been in production for 25 + years, so skilled admins, third-party tools, and proven operational playbooks are easy to find.
- Encrypted by default with optional Network Level Authentication (NLA) — TLS protects every session, and NLA forces users to authenticate before a desktop is created, blocking many automated attacks.
- Enables secure work-from-anywhere and rapid support — Your IT staff (or vendors) can administer servers, push patches, and assist users without a site visit, keeping operations running during outages or travel bans.
- Resource-sharing keeps workflows intact — Virtual channels redirect printers, drives, clipboards, and even multimedia, so users retain local-like productivity over a remote link.
- Centralized hosting lowers endpoint costs — Running apps on a datacenter VM or an Azure Virtual Desktop host pool lets you defer hardware refresh cycles and simplify patch management (licensing rules apply). This principle of centralized hosting is fully realized with a Cloud PC, which provides users with a complete, personal Windows desktop experience streamed directly from the cloud to any device; leveraging RDP to connect to a Cloud PC allows businesses to significantly reduce endpoint hardware costs and streamline device lifecycle management.
Major limitations and risks
- Internet-facing port 3389 is a top brute-force attack target — Attackers continuously scan for open RDP endpoints, then employ credential-stuffing or BlueKeep-style exploits. Lock down the port or tunnel through VPN/RD Gateway.
- Bandwidth and latency sensitivity — Session quality degrades on low-speed or high-jitter links; keystrokes lag and screens redraw slowly, hurting user experience for graphics-heavy tasks.
- One-user-per-desktop model limits collaboration — Native RDP allows a single active session; multi-user scenarios demand Windows Server RDS CALs or third-party brokers.
- Complex external setup and scaling — Hardening, certificate management, and firewall rules grow tedious as you add sites or contractors, increasing administrative overhead.
- Licensing and OS edition constraints — Windows Home cannot receive RDP connections, and commercial use often requires additional RDS or Azure subscription fees—costs that escalate with headcount.
How do I secure RDP against modern cyber-threats?
RDP is a prime target for ransomware crews and credential-stuffing bots, so “working out of the box” is never enough. A layered defense—hardening first, then monitoring, then rapid response—cuts vulnerability without killing usability.

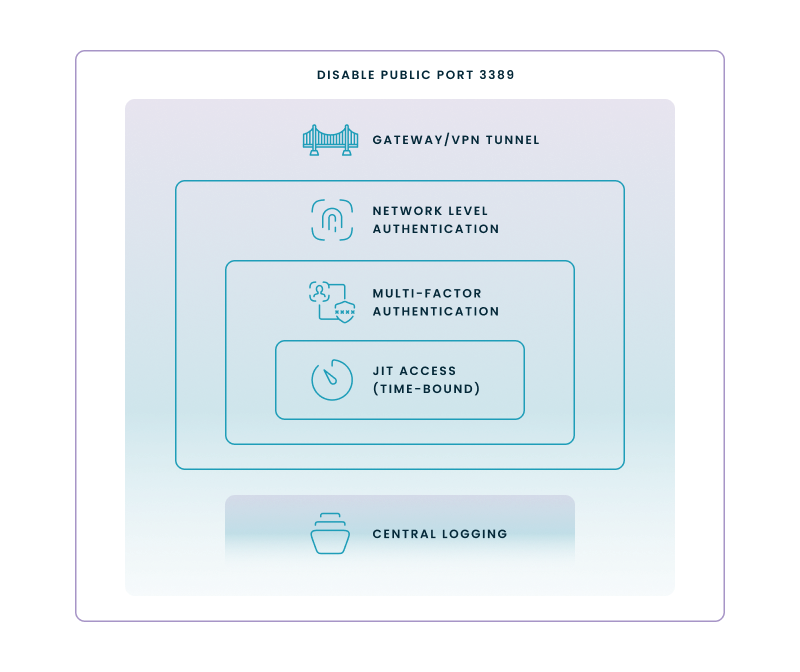

Reading inward (outer ring → core) on the image above:
- Disable public port 3389 – never expose RDP directly to the Internet. Restrict TCP/UDP 3389 to a VPN, RD Gateway, or Azure Bastion. CISA calls open RDP “a routinely exploited vector.”
- Gateway / VPN – force all traffic through an encrypted jump service.
- Network Level Authentication (NLA) – require credentials before session setup. Enforce Network Level Authentication and TLS 1.2+. NLA requires credentials before a session spins up; TLS protects the channel.
- Multi-Factor Authentication (MFA) – add a second factor to block stolen passwords. Turn on MFA for all remote admins. Push or FIDO keys block >99 % of brute-force attempts noted in CISA/FBI advisories.
- Just-in-Time (JIT) access or time-bound Privileged Access Workstations. Close the door when tasks finish. Open RDP only for the precise window and user needed.
- Central logging – capture and forward all RDP events for monitoring and audit.
Other configuration hardening steps include:
- Apply account-lockout and strong-password GPOs. Lock after 10 bad tries, store hashes with NTLMv2 only.
- Patch aggressively. BlueKeep-style exploits linger on unpatched servers. Run current Windows builds and revoke weak ciphers.
How can I monitor and audit RDP activity for compliance?
| Control | What to Log | Where to Send It | Why It Matters |
|---|---|---|---|
| Windows Event IDs 4624/4625, 1149 | Successful / failed logons, RemoteDesktopServices-RDPCore events | SIEM (Sentinel, Splunk, etc.) | Spot brute-force bursts and orphaned accounts |
| RD Gateway logs | Connection authorization policy hits | Central syslog | Prove MFA and client health checks |
| Azure Monitor / Log Analytics | Heartbeat + SecurityBaseline | Azure Sentinel | Real-time anomaly alerts |
Add weekly review of lockout counts and privilege changes; CISA recommends central log retention for at least 12 months.
What are emerging threats and how are attackers abusing exposed RDP endpoints?
- Credential marketplaces. Leaked RDP creds sell for <$10 on dark-web forums, giving attackers turnkey access.
- Ransomware staging. Sophos IR found RDP abused in 84% of investigated cases in 2024, often for lateral movement after initial phish.
- Automated brute force + proxy networks. Bots rotate IPs to avoid lockouts; GeoIP blocking alone no longer suffices.
- Legacy cipher downgrade attacks. Servers left on “Negotiate” may fall back to weak RC4; force TLS 1.2/1.3 only.
- Clipboard data exfiltration. Malware piggybacks on RDP virtual channels to steal copied credentials or files.
Action tip: Pair continuous threat-intel feeds with SIEM rules that trigger on repeated 3389 scans, spikes in 4625 failures, or off-hours logons from new geos.
These controls, applied together, harden RDP without derailing the workflows it enables—keeping your admins productive and your board off the breach-notification headlines.
What architecture choices and deployment models exist for enterprise RDP?

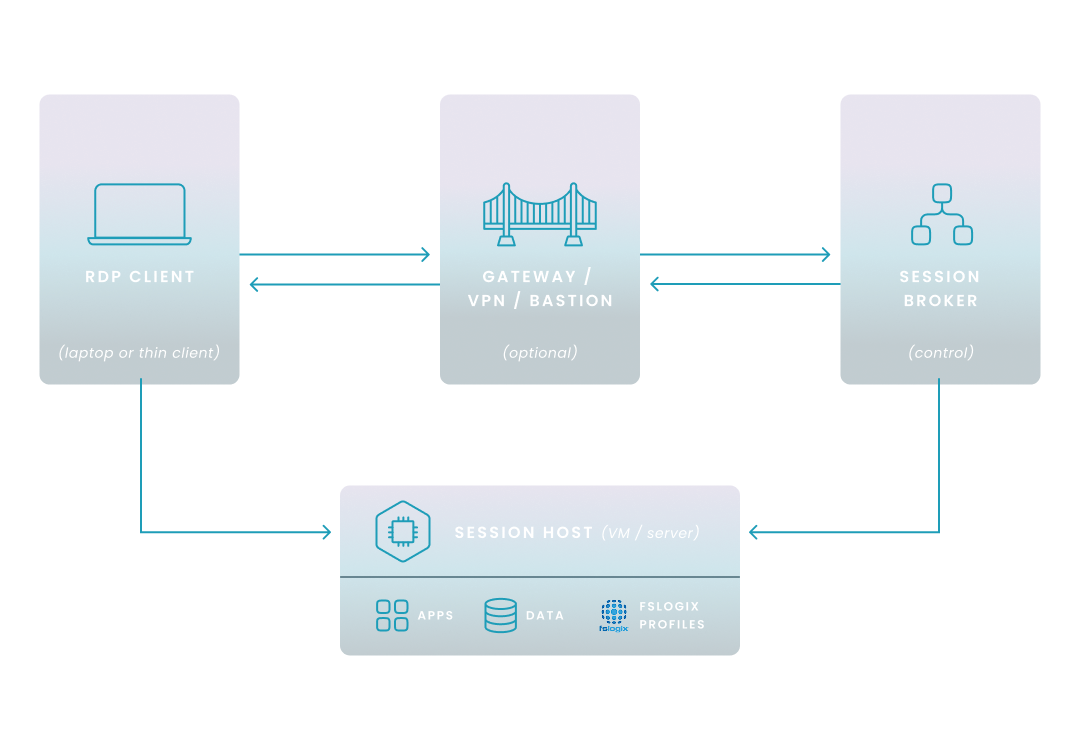

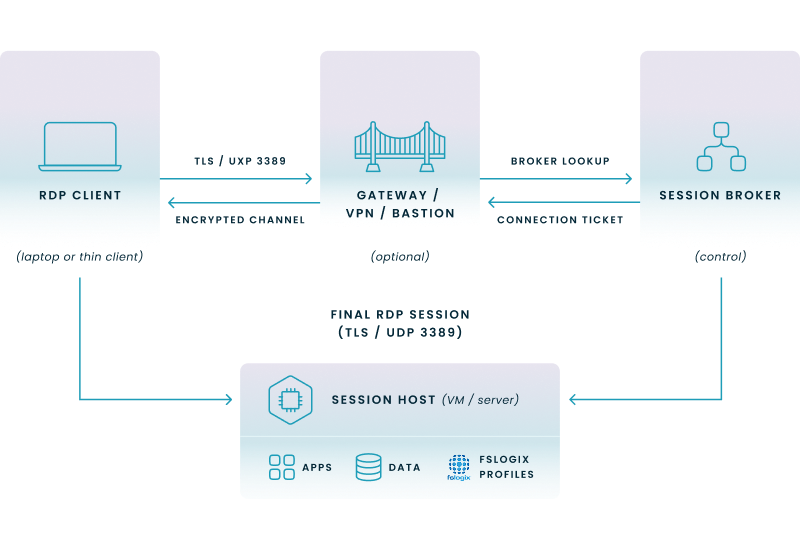

Key callouts for the diagram above:
- Client authentication – MFA & Network Level Authentication occur before session creation. Microsoft refers to their RDP client software as Remote Desktop Connection (formerly “Terminal Services Client”).
- Encrypted transport – TLS 1.2 / 1.3 with optional RDP Shortpath over UDP.
- Control vs. data plane – Broker handles logon and load-balancing; session host runs the user’s desktop.
When considering remote desktop solutions, many businesses evaluate options like AVD and Windows 365, which serve as compelling Citrix DaaS alternatives, particularly for organizations seeking deep integration with Microsoft Azure services and modern Desktop as a Service (DaaS) capabilities.
No single RDP setup fits every organization. Your options range from a classic on-prem Remote Desktop Services (RDS) farm of RDP servers to fully managed cloud desktops. The matrix below helps you map each model to security, scalability, and licensing needs.
How does RDP fit into an Azure Virtual Desktop environment?
For businesses exploring virtual desktop solutions, Azure VDI represents the capability to host and manage these desktops on Microsoft's cloud platform, with Azure Virtual Desktop (AVD) being a key service that provides global scalability, centralized management, and access to Windows desktops from virtually anywhere.
- Host pools & session hosts – VM collections that stream Windows 11/10 or Server desktops to users. When Azure Virtual Desktop streams user desktops, the use of Windows 11 Enterprise is common, as this enterprise-grade operating system edition is designed with robust security features, comprehensive manageability, and support for multi-session connections, making it highly suitable for scalable virtual desktop deployments. The AVD control plane brokers RDP connections and handles load-balancing.
- RDP Shortpath – AVD prefers UDP transport for lower latency; it falls back to TCP only if UDP cannot be established.
- Identity & policy hooks – Azure AD MFA, Conditional Access, and Intune baseline policies wrap around each session.
- Private networking – You can route traffic through Azure Virtual Network peering or enable Private Link to remove public endpoints entirely. When deploying solutions like RD Gateway for secure RDP access, especially at scale, Azure Load Balancer can be a critical component to distribute client connections across multiple gateway servers, thereby enhancing service availability and resilience.
When does it make sense to use RD gateway, VPN, or private link?
| Connectivity Option | Best For | Key Pros | Key Cons |
|---|---|---|---|
| RD Gateway | Contractors & quick roll-outs | HTTPS tunnelling (443), granular CAP/RAP policies | Still exposes a public endpoint; adds extra hop |
| Site-to-Site or User VPN | Full-network access, small user counts | No extra RDS role; encrypts all traffic | Backhauls Internet traffic unless split-tunnel; higher latency for chatty apps |
| Azure Private Link | Strict zero-trust or regulated workloads in AVD | Keeps traffic on Microsoft backbone; no inbound public IP | Azure-only; requires DNS & VNet plumbing |
RD Gateway suits remote help-desk scenarios where you need to avoid VPN sprawl, while a VPN is simpler when users already need broad network access. Private Link is the go-to when auditors demand that RDP never traverse the Internet.
How do licensing and cost considerations differ across on-prem and cloud RDP?
| Model | License Components | Typical Cost Pattern | Notes |
|---|---|---|---|
| On-prem RDS | Windows Server OS + RDS CALs (Per User or Per Device) | One-time CAL purchase, plus server hardware/VMs | CALs must match or exceed operating systems version. |
| Azure Virtual Desktop | Eligible Microsoft 365 or Windows E3/E5 per-user License (includes Windows VDA rights) + Azure compute/storage | Opex: pay-as-you-go VM hours; shut down hosts to save | No extra RDS CALs for internal users. |
| Windows 365 Cloud PC | Per-user subscription that bundles License + compute (e.g., 4 vCPU/16 GB RAM at US $101/user/mo). | Flat monthly fee; no surprise VM charges | Ideal for predictable headcount. |
License tip: If you own Microsoft 365 E3/E5, you already have the user rights to access AVD session hosts; you still pay Azure VM runtime but skip extra CALs.
These deployment choices let you balance control, security, and cost. Start with the regulatory or latency constraint that matters most, then pick the model—and License mix—that aligns with it.
How can I optimize RDP performance for distributed teams?
A smooth RDP session hinges on three things you can control: network quality, protocol settings, and host resources. Tune each layer and your remote workforce sees near-local responsiveness—even across continents.
Bandwidth, codec, and network tweaks that move the needle
- Use UDP whenever possible. Enable RDP Shortpath in Azure Virtual Desktop or Windows 365 to switch from TCP to UDP, cutting round-trip time by 20–40 %.
- Right-size your codec. H.264/AVC 444 delivers sharper graphics but roughly doubles bandwidth versus default mode; reserve it for design or video workflows.
- Cap resolution and monitor count. A single 1080p monitor needs <300 Kbps for typical Office work; dual-4K screens can spike above 2 Mbps.
- Enable GPU acceleration or NV-series VMs for 3D apps. Offloading encode/decode to the GPU raises frame rates and frees CPU for bursty tasks.
- Prioritize RDP traffic with QoS. Tag outbound UDP 3389 at DSCP 46 (EF) so voice-like latency rules apply across WAN hops.
- Trim the fat. Disable desktop background, font smoothing, and animation in Group Policy for bandwidth-starved sites.
Bandwidth cheat-sheet (single 1920 × 1080 monitor)
| Activity | Default Mode | H.264/AVC 444 |
|---|---|---|
| Idle screen | 0.3 Kbps | 0.3 Kbps |
| Word editing | 100–150 Kbps | 200–300 Kbps |
| Excel with charts | 150–200 Kbps | 400–500 Kbps |
What troubleshooting steps can resolve common RDP connectivity issues?
- Check UDP first. qwinsta on the host or the AVD diagnostics blade confirms if the session negotiated UDP Shortpath; falling back to TCP usually signals blocked ports or mis-routed NAT.
- Measure latency. Aim for <100 ms; anything above that will feel sluggish. Ping both the gateway and the session host to isolate WAN vs LAN delay.
- Verify codec settings. A recent Windows update may reset H.264 policies—re-enable in gpedit.msc if visuals degrade.
- Inspect bandwidth. Task Manager → Performance → Ethernet to spot oversubscription; throttle background OneDrive or Teams sync if spikes align with lag reports.
- Confirm server resources. CPU over 85 % or RAM pressure on session hosts triggers frame drops; scale VM size or session density.
- Review gateway health. High CPU or expired TLS certs on RD Gateway lead to disconnect storms; monitor Event ID 20499 and 312.
Combine UDP transport, smart codec choices, and disciplined monitoring to give distributed teams an experience close to local desktops—without overspending on bandwidth or hardware.
How does RDP align with governance, risk, and compliance frameworks?
Regulators treat remote access as a high-risk activity, so you must map RDP settings to formal controls—not just “best effort” hardening. The table below shows how common frameworks call out remote-desktop security and the concrete actions you can prove during an audit.
TABLE
Quick-start governance checklist
- Policy alignment – Update your remote-access policy to reference specific RDP controls (TLS 1.2+, NLA, MFA).
- Role-based access – Use AD groups or Azure AD PIM to limit who can initiate RDP; review membership quarterly.
- Logging and retention – Ship RDP event logs to a central SIEM; keep at least 12 months (PCI) or 6 years (HIPAA).
- Continuous monitoring – Set SIEM rules for >5 failed logons in 60 sec, off-hours admin access, or new geolocations.
- Annual control testing – Include RDP in penetration tests and BCDR drills; document remedial actions for auditors.
By tying each RDP control to a specific framework requirement, you give auditors clear evidence while ensuring your remote-desktop footprint meets the same bar as the rest of your security program.
| Framework | Relevant Control(s) | What the Control Asks For | How You Satisfy It with RDP |
|---|---|---|---|
| NIST SP 800-53 Rev. 5 | AC-17 Remote Access, AU-2 Audit Events | Authorize, encrypt, and monitor every remote session. | Remove public 3389, force TLS 1.2+, enable Network Level Auth, forward Event IDs 4624/4625/1149 to SIEM. |
| ISO 27001:2022 | Annex A 6.7 Remote Working | Define and enforce a remote-access policy with technical controls. | Document RDP hardening in your ISMS; run annual policy attestation and access recertification. |
| PCI DSS v4.0 | Req. 2.2.6, 8.3 MFA, 10.2 Log Review | Secure remote admin to the CDE with MFA, jump hosts, and central logging. | Route RDP through RD Gateway with MFA; review logs daily for unauthorized access. |
| HIPAA Security Rule | 45 CFR §164.312(a)(2)(iv) Encryption, 164.312(b) Audit Controls | Protect ePHI in transit and record remote activity. | Enforce TLS, disable clipboard redirection for PHI apps, retain logs ≥6 years. |
Quick-start governance checklist
- Policy alignment – Update your remote-access policy to reference specific RDP controls (TLS 1.2+, NLA, MFA).
- Role-based access – Use AD groups or Azure AD PIM to limit who can initiate RDP; review membership quarterly.
- Logging and retention – Ship RDP event logs to a central SIEM; keep at least 12 months (PCI) or 6 years (HIPAA).
- Continuous monitoring – Set SIEM rules for >5 failed logons in 60 sec, off-hours admin access, or new geolocations.
- Annual control testing – Include RDP in penetration tests and BCDR drills; document remedial actions for auditors.
By tying each RDP control to a specific framework requirement, you give auditors clear evidence while ensuring your remote-desktop footprint meets the same bar as the rest of your security program.
Know the TCO
This step-by-step wizard tool gives you the total cost of ownership for Windows 365 in your organization.
What strategic questions should executives ask before green-lighting an RDP-based initiative?
Business impact, not technical elegance, decides whether an RDP rollout succeeds. Use the checklist below in board or steering-committee sessions to surface the cost, risk, and change-management issues that commonly derail projects after launch.
| Executive Question | Why It Matters | Data Points / Proof to Gather |
|---|---|---|
| What is our total cost of ownership across licensing and infrastructure? | CALs, cloud compute, gateways, and support contracts can outweigh the “built-in” appeal of RDP. | RDS User CAL ≈ US $220 one-time; Windows 365 Cloud PC 4 vCPU/16 GB = US $101 user/mo; AVD adds Azure VM runtime + storage |
| How will we mitigate the 84% breach statistic tied to RDP abuse? | RDP was leveraged in 84% of 2024 incident-response cases — attackers prefer it because valid logons slip past AV. | Require MFA, NLA, and no public 3389; budget for SIEM tuning and penetration tests. |
| Can the chosen model scale up—or down—within target SLAs? | Holiday peaks or M&A events strain session hosts. | AVD autoscaling shuts down idle VMs; on-prem farms may need extra hardware. |
| What user-experience targets (latency, frame rate) will we guarantee? | Poor UX drives shadow IT and support tickets. | Aim for <100 ms RTT and UDP Shortpath; pilot with high-pixel-density users first. |
| Which compliance clauses govern remote desktop in our industry? | Auditors will ask for explicit mapping of NIST AC-17, ISO 27001 A 6.7, PCI DSS 4.0 Req 8.3, etc. | Maintain policy docs + 12 months of RDP logs. |
| What is our exit or migration strategy? | Vendor-lock can trap you in legacy CALs or region-specific cloud images. | Capture image portability requirements and CAL buy-back terms in contracts. |
| How will we recover if an RDP gateway is compromised? | Gateway is a single point of failure (and breach). | Plan segmented management networks, JIT admin, and scripted rebuilds. |
| Do we have the skills and monitoring budget to operate this 24/7? | RDP misuse indicators often surface after hours. | Factor in SOC coverage or MDR subscription that watches 4625/1149 spikes. |
Work through these questions early, document the evidence, and you’ll approve—or reject—an RDP initiative with eyes wide open, not on gut feel.
How can Nerdio streamline large-scale RDP and Azure Virtual Desktop deployments?
Nerdio Manager sits on top of Azure and Windows 365, automating the pieces you would otherwise script by hand. The platform’s GUI, policies, and auto-scaling engine help you roll out thousands of cloud desktops fast—and keep the monthly bill under control.
How does automated host-pool management cut daily admin time?
-
Click-through provisioning. Deploy session-host images, FSLogix profiles, and AVD host pools from a single wizard instead of multiple Azure blades. Penn State’s IT team highlighted the “ease and speed of implementation.”
-
Graphical runbooks. Schedule patching, reboots, image swaps, and scripted actions without PowerShell.
-
Bulk actions. Start, stop, or resize hundreds of VMs at once—useful during academic breaks or seasonal demand spikes.
How does Nerdio’s auto-scaling and FinOps engine reduce Azure costs?
| Metric | Typical Azure Baseline | With Nerdio Auto-scaling |
|---|---|---|
| Compute/storage savings | — | 50–75% average |
| Real-world case | Kaplan’s AVD rollout | 71% reduction; supports 1,000+ users |
Key levers include schedule-based “burst” scaling, idle-host hibernation, and right-sizing based on actual CPU/RAM use.
How does Nerdio enforce role-based access and compliance at scale?
-
Azure AD integration. Delegate management rights by subscription, resource group, or host pool; auditors see least-privilege assignments in one pane.
-
Policy workflow. Push Intune baselines, conditional-access rules, and RBAC updates together—reducing drift across hundreds of desktops.
-
Central logging. Nerdio pipes activity to Azure Monitor or your SIEM for PCI/NIST evidence.
What extra efficiencies come from Windows 365 and Intune workflows?
-
Unified console. The same interface governs AVD session hosts, Cloud PCs, and Intune device policies.
-
AI-powered cost and usage recommendations. Version 7 surfaces License and VM rightsizing tips so you can act before budgets overrun.
By automating host management, shrinking compute waste, and wrapping everything in delegated policy controls, Nerdio lets you deliver enterprise-scale RDP and AVD environments without a proportional jump in headcount or spend.
