Introduction
Running Citrix Desktop as a Service (DaaS) on a consumption-based cloud like Microsoft Azure offers incredible flexibility, but it also introduces financial complexity. Without proactive management, your cloud spending can quickly escalate, negating the return on investment (ROI) of your VDI environment.
Mastering cost optimization is essential for maintaining a predictable budget and ensuring your virtual desktop infrastructure is both powerful and sustainable for your enterprise.
Disclaimer: Content referencing Citrix and Microsoft products is based on public information from those company’s websites, current as of the last article update. For the latest product details and further inquiries, please consult the official Citrix or Microsoft websites.
What are the primary cost drivers for a Citrix DaaS deployment in Azure?
Effectively managing the financial intricacies of a Citrix on Azure deployment requires a deep understanding of its primary cost drivers, from virtual machine consumption to licensing fees. Azure Compute is almost always the largest variable cost, which you can control most effectively with power management and proper VM sizing. Your total Citrix on Azure bill also includes third-party licensing and Azure infrastructure consumption, and can be broken down into the 5 key areas below:

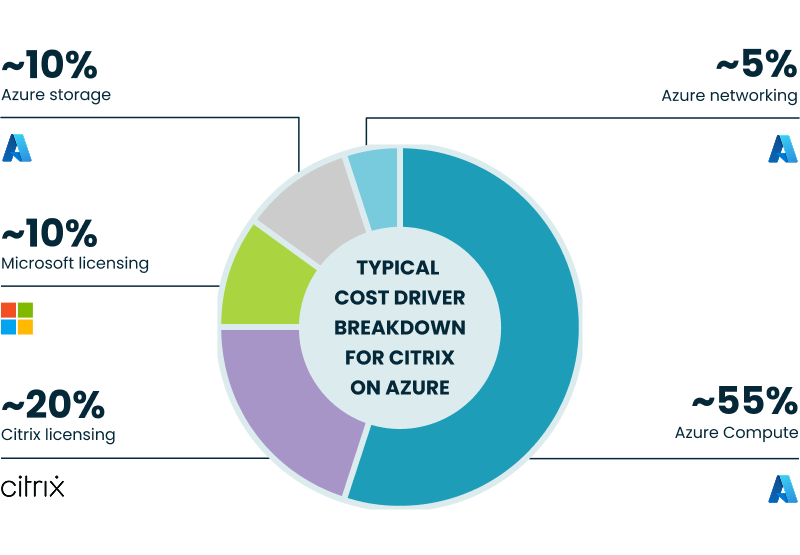

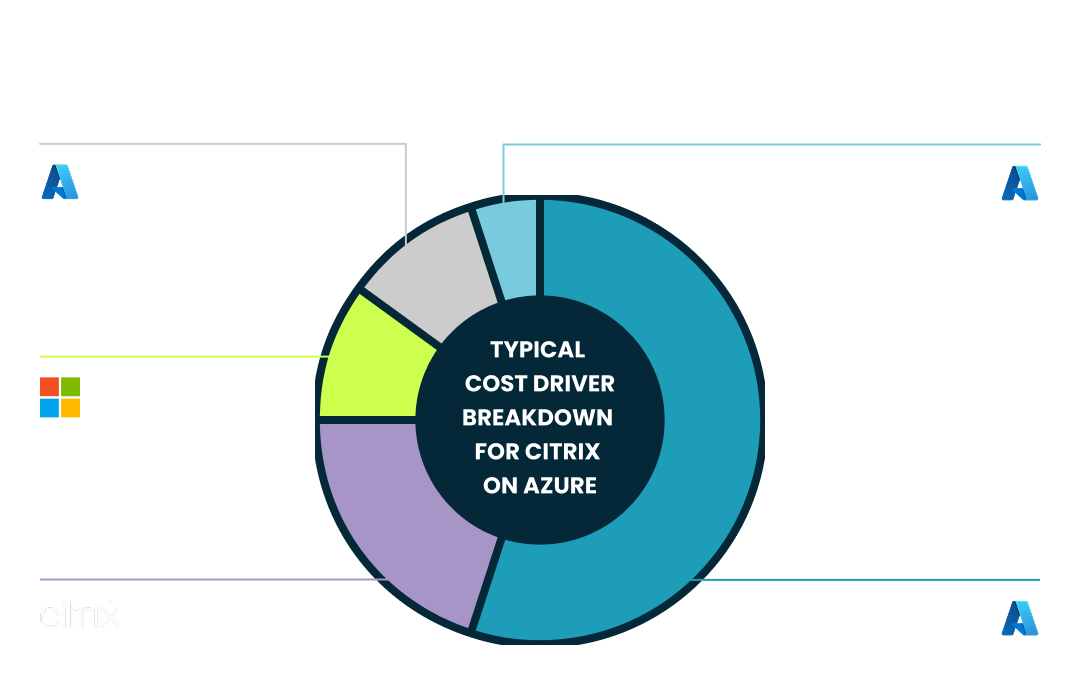

Typical Cost Driver Breakdown for Citrix on Azure:
- Azure Compute (~55%): This is the largest portion of your Azure bill. It includes the cost of the virtual machines (VMs) that run your end-user sessions (session hosts) and your infrastructure servers (Cloud Connectors, etc.).
- Citrix Licensing (~20%): This is a significant operational expense and consists of the per-user, per-month subscription fees required to use the Citrix DaaS platform.
- Microsoft Licensing (~10%): This includes the licenses needed to run Windows 10/11 Enterprise desktops and potentially Remote Desktop Services (RDS) Client Access Licenses (CALs), though many are included with Microsoft 365 subscriptions.
- Azure Storage (~10%): These costs are generated by the managed disks attached to your VMs for the operating system, as well as the storage solutions used for user profiles, such as FSLogix containers on Azure Files or Azure NetApp Files.
- Azure Networking (~5%): This is typically the smallest component. Costs in this category come from data moving out of Azure regions (egress), as well as the services that connect your on-premises network to Azure, like VPN Gateways or ExpressRoute.
We’ll now explore how to reduce Citrix DaaS costs on Azure for each of these 5 areas.
How can I optimize Azure compute costs for Citrix virtual machines?
Since compute is your biggest expense, optimizing your VMs offers the most significant opportunity for savings. Focusing on efficiency here will have an immediate and direct impact on your monthly Azure bill.
What is the right way to size virtual machines for my workloads?
"Right-sizing" is the process of matching VM performance to actual workload demands, avoiding the waste of over-provisioning. Instead of guessing, use tools like Azure Monitor to analyze the CPU, memory, and disk usage of your existing session hosts over a representative period. This data-driven approach allows you to select VM instances that meet user needs without paying for capacity you don't use. This data-driven approach allows you to select VM instances that meet performance needs without paying for unused capacity, ensuring a positive user experience while controlling costs.
Which Azure VM families are most cost-effective for VDI?
Not all VMs are created equal, and choosing the right family for the job is critical for cost control. While specific needs vary, here are some general guidelines for VDI workloads:
- D-series: A great general-purpose choice and a common starting point for VDI, offering a balanced ratio of CPU to memory.
- E-series: Ideal for users who run memory-intensive applications, as these VMs offer a higher memory-to-CPU ratio.
- B-series: These "burstable" VMs are the most cost-effective option for light workloads with inconsistent usage (e.g., task workers). They build up credits during periods of low use that can be spent to "burst" to full performance when needed.
How can I use Azure Reserved Instances and Savings Plans to save money?
For your predictable, always-on workloads like Citrix Cloud Connectors or domain controllers, you should avoid paying the standard pay-as-you-go rate.
- Azure Reserved Instances (RIs): By committing to a specific VM type in a specific region for a one- or three-year term, you can receive a discount of up to 72% compared to pay-as-you-go pricing.
- Azure Savings Plans: This is a more flexible option where you commit to a fixed hourly spend on compute for a one- or three-year term. This plan automatically applies to your compute usage globally, offering more flexibility than RIs if your VM needs change.
What is the most effective way to manage power for session hosts?
The most expensive VM is one that is running when no one is using it. Implementing a robust power management strategy to deallocate session hosts during off-hours (nights and weekends) is the single most effective way to reduce compute costs. Citrix Autoscale provides built-in tools for load-based and schedule-based scaling, allowing you to provide resources to users on demand while helping you automate this process.
How can I reduce my Citrix licensing costs?
While your Citrix DaaS subscription is often a fixed operational expense, you can still find savings by ensuring you are using the right license type for your workforce. Regularly auditing your license usage is the best way to prevent paying for unused capacity.
How do I choose the right Citrix license type?
Citrix primarily offers two models, and choosing the correct one for different user groups is crucial for cost-efficiency.
- Named User: This license is assigned to a specific, unique user. It's the best model for standard employees who need dedicated, consistent access to the Citrix environment throughout their workday.
- Concurrent User: This license is not tied to a specific person but is part of a shared pool. When a user logs in, they check out a license; when they log out, it's returned to the pool for someone else to use. This model is highly cost-effective for organizations with:
- Shift workers
- Part-time employees
- Users spread across multiple time zones
By analyzing your usage patterns, you may find that a mix of both license types or a switch to concurrent licensing for certain groups could result in significant savings.
What is the best way to track and manage my Citrix licenses?
Preventing "license sprawl" is an ongoing task. You should regularly review who has an assigned license and whether they still need it.
Use the Citrix Cloud console to monitor your license assignments and track usage trends over time. This data will help you identify licenses assigned to former employees or users whose roles have changed and no longer require access. Establishing a quarterly process to reclaim and reharvest these unused licenses ensures you only pay for what you actively use. For the most detailed, up-to-date guidance, always refer to the official Citrix product documentation.
How can I reduce my Microsoft licensing costs?
Microsoft licensing can be complex, but significant savings are available by taking full advantage of the entitlements and benefits your organization may already have. Understanding these programs is the first step to reducing this portion of your VDI-related expenses.
What is the Azure Hybrid Benefit and how does it save me money?
The Azure Hybrid Benefit is a licensing program that allows you to leverage your existing on-premises Windows Server and SQL Server licenses that have active Software Assurance. When you apply this benefit to your Azure VMs, you essentially waive the cost of the Microsoft operating system license.
This means you stop paying the full price for a Windows VM and instead pay only the lower, base compute rate (the "Linux rate"). For a large fleet of session hosts, this can result in savings of up to 40% on your virtual machine costs. You should work with your Microsoft licensing partner or consult the official Azure Hybrid Benefit documentation to confirm your organization's eligibility.
How does my Microsoft 365 license affect VDI costs?
This is one of the most important licensing considerations for desktop virtualization on Azure. Many common enterprise and business Microsoft 365 licenses (such as E3, E5, F3, and Business Premium) include the entitlement to run Windows 10/11 Enterprise multi-session.
This is the foundational licensing benefit of Azure Virtual Desktop (AVD). If your users are already licensed with one of these plans, you do not need to purchase a separate Virtual Desktop Access (VDA) license for them to use AVD. This can completely eliminate a major cost category compared to other VDI solutions and is a primary driver for organizations considering a migration from Citrix to a platform like AVD, especially when managed with an automation solution.
What are the best strategies for reducing Azure storage costs?
After compute, storage is often the next largest line item on your Azure bill. Optimizing your disk types and your strategy for user profiles can lead to substantial savings.
| Disk Type | Ideal Use Case | Performance | Relative Cost |
|---|---|---|---|
| Premium SSD | Production workloads, performance-sensitive applications, and VDI for power users requiring high I/O. | High (Low latency, high IOPS & throughput) | High |
| Standard SSD | The best balance for most needs, including web servers, dev/test environments, and standard VDI users. | Good (Consistent latency & reliable IOPS) | Moderate |
| Standard HDD | Backup, archival, and infrequently accessed data. Not recommended for OS disks or interactive applications. | Low (High latency, variable performance) | Low |
How do I choose the right managed disk type?
Choosing the right disk tier based on user performance requirements is key to avoiding unnecessary storage costs.
- Premium SSDs: Offer high performance and low latency, making them suitable for power users or workloads that are sensitive to disk performance.
- Standard SSDs: Provide a good balance of performance and cost, making them the recommended choice for the majority of knowledge workers.
- Standard HDDs: The most cost-effective option, but generally not recommended for OS disks in a VDI environment due to poor performance.
Can I use Azure Ephemeral OS Disks with Citrix?
Yes, and you should if your environment supports it. Ephemeral OS Disks use the local storage of the Azure host machine to store the VM's operating system, meaning you pay nothing for the OS disk. The primary requirement is that your session hosts must be non-persistent (stateless), where user changes are wiped away upon logoff, as the Ephemeral Disk is deleted when the VM is deallocated.
How can I optimize storage for user profiles like FSLogix?
User profile containers can consume a significant amount of storage. The cost can be controlled by choosing the right back-end file storage solution—such as Azure Files Premium or Azure NetApp Files—based on your specific performance needs and budget. Additionally, implementing maintenance routines to monitor for and shrink oversized profile containers can help prevent uncontrolled storage growth. Furthermore, protecting this data is paramount, and integrating a service like Azure Backup ensures that user profiles and other critical information are securely backed up and recoverable, aligning with both data protection and cost-management strategies.
How can I reduce my Azure networking costs?
While networking is often a smaller portion of an Azure bill compared to compute, unmanaged data transfer charges can lead to unexpected cost spikes. Proactively managing your network architecture and data flow is key to keeping these costs under control.
How can I minimize data egress charges?
Data egress refers to any data leaving an Azure region, and it's one of the most common sources of surprise networking costs. The most effective strategy to minimize these charges is to keep your resources communicating within the same Azure region.
- Co-locate your services: Ensure that your Citrix session hosts, user profile storage (like Azure Files for FSLogix), and any application backends they communicate with are all deployed in the same Azure region. This ensures traffic between them uses the free, high-speed Azure backbone instead of incurring egress fees.
- Understand Availability Zone traffic: While traffic within a single Availability Zone (AZ) is free, data transferred between different AZs in the same region is billed. For high-traffic applications, keeping the components within a single AZ can be more cost-effective, though this involves a trade-off with high availability.
What is the most cost-effective way to connect my on-premises network?
When creating a hybrid connection to your on-premises datacenter, choosing the right service impacts both cost and performance.
- Azure VPN Gateway: This is a cost-effective choice for many businesses, establishing a secure connection over the public internet. It is billed hourly for the gateway's runtime plus a fee for data transfer, making it ideal for scenarios with low-to-moderate bandwidth requirements.
- Azure ExpressRoute: This provides a private, dedicated, high-bandwidth connection to Azure. While it involves higher upfront costs and a monthly port fee, it can become more economical at a very large scale due to its predictable pricing and lower data transfer rates compared to a VPN.
How can I optimize my VNet architecture for cost?
A well-organized "hub-and-spoke" network architecture is a common best practice, but it's important to understand the cost implications. Traffic that crosses between two peered Virtual Networks (VNets) incurs a charge for both ingress and egress. If you have two services (e.g., your session hosts in one VNet and a database in another) that communicate very heavily, it may be more cost-effective to place them in the same VNet to eliminate the VNet peering charges. Properly configuring an Azure Load Balancer is another key architectural component, as it ensures user traffic is efficiently distributed across your session hosts, enhancing both performance and availability while preventing any single VM from becoming a bottleneck.
What if optimizing the existing Citrix infrastructure isn't enough?
The strategies above can significantly reduce your Azure consumption, but they don't change a fundamental part of your bill: Citrix licensing. To achieve the next level of savings, you must look beyond tactical infrastructure tweaks and evaluate the Total Cost of Ownership (TCO) of your entire VDI platform. A comprehensive analysis of the TCO for Citrix DaaS is the first step toward understanding if a platform migration could yield greater financial benefits.
This involves exploring if there is a more financially efficient, cloud-native platform that can meet your enterprise needs. This evaluation often involves a detailed comparison of leading Citrix alternatives to identify a more financially efficient, cloud-native platform that can meet enterprise needs.
How can migrating from Citrix to Azure Virtual Desktop reduce costs?
Azure Virtual Desktop is Microsoft’s native desktop virtualization service built on Azure. For organizations already invested in the Microsoft ecosystem, migrating from Citrix to AVD can unlock strategic financial advantages by addressing both licensing and infrastructure costs.
Can AVD eliminate VDI licensing costs?
For many businesses, the answer is yes. The access rights to use AVD are included with the Microsoft 365 and Windows enterprise licenses you may already be paying for. If your users are licensed with any of the following, you already have the rights to AVD:
- Microsoft 365 E3/E5/A3/A5/F3/Business Premium
- Windows E3/E5/A3/A5
For these organizations, migrating from Citrix means the separate, per-user licensing fee for VDI access can be completely eliminated.
Does AVD simplify infrastructure needs?
Yes. AVD is a Platform as a Service (PaaS) offering, which means Microsoft manages the core control plane components (like the web access, gateway, and connection broker) for you as part of the Azure service. This eliminates the need for you to deploy, manage, and pay for the compute associated with infrastructure servers like Citrix Cloud Connectors, simplifying your environment and reducing your administrative burden.
What are the management and automation challenges with native AVD?
While AVD is powerful and cost-effective from a licensing perspective, managing it at scale through the native Azure portal can be complex. Executing advanced automation, especially the dynamic autoscaling required to truly minimize compute costs, often requires deep Azure expertise and significant investment in custom scripting. This operational complexity can create hidden costs in the form of increased administrative time or wasted Azure spend if not managed perfectly.
NOTE: if your organization is standardized on Microsoft 365 and prioritizes simplicity, budget predictability, and fast deployment, your evaluation should also involve a detailed Citrix vs. Windows 365 analysis.
Know the TCO
This step-by-step wizard tool gives you the total cost of ownership for AVD in your organization.
How does Nerdio make AVD a more cost-effective Citrix alternative?
An Azure Virtual Desktop management and automation platform like Nerdio Manager for Enterprise is the key to unlocking AVD's full potential and making it a superior financial alternative to Citrix. It bridges the gap between AVD's powerful capabilities and the operational simplicity required by enterprise IT teams, directly targeting your largest cost centers.
- Drastically Lowering Compute Costs with Advanced Autoscaling: Nerdio’s autoscaling engine for AVD is a primary driver of cost savings. It uses predictive algorithms and real-time user session data to scale your session host VMs up and down with pinpoint precision, ensuring you pay for the absolute minimum compute necessary to meet user demand—often reducing Azure compute spend on session hosts by 50-75%.
- Automating Cost-Saving Storage Features: Nerdio simplifies and automates the deployment of cost-free Ephemeral OS Disks for your AVD host pools. It also provides automation for scaling your FSLogix profile storage, preventing cost overruns from oversized storage tiers.
- Reducing Administrative Overhead: Nerdio provides a single, intuitive management portal that transforms complex AVD tasks—like managing golden images, deploying host pools, and assigning applications—into simple, automated workflows. This drastically reduces the time and specialized skills needed to manage your AVD environment, lowering your operational soft costs.
- Providing Comprehensive Cost Visibility: Nerdio includes built-in dashboards that translate complex Azure billing data into clear, actionable insights about your AVD spending. You can easily see your costs, track your savings over time, and demonstrate the powerful ROI of your migration to AVD with Nerdio.
